High Pressure Universal Burst / Proof Test Machines
HOSE, FITTINGS AND TUBE BURST/PROOF TEST MACHINES

Test all types of hose tubing assemblies, manifolds, valve housing
up to 60,000 psi

The CPC Series of high pressure hose, fittings and tube burst/proof test machines make hose, valve and manifold testing fast, safe and efficient. The work area and instrumentation are designed to be user-friendly. Hose assemblies and other items can be quickly proof-tested for peace of mind or customer certification. The machines are designed to operate with petroleum base, glycol and many synthetic fluids. Check with our engineering department for special fluid use approval.

HORIZONTAL Burst Test Stand

Power:

110 V AC electrical, 60 PSI air supply
Capacity: Pressures to 30,000 PSI (higher pressures available); inside dimensions 48 x 15.75 x 12" with 15.75 x 18 x 5" sump
Machine Weight: Approx. 600 pounds

Standard Features

  • Totally Enclosed Unit with Built-In Storage Cabinet and Pull-Out Shelf for Tools and Connectors
  • Lexan Viewing Window in Top Cover
  • 2" NPT Maximum Connector to Test Sump
  • Test Connectors for 0.25, 0.375, 0.5, 0.75, 1, 1.25, 1.5 and 2" hoses
  • Air operated hydraulic power unit and high pressure load valve to develop up to 30,000 PSI



  • Electronic digital indicator with transducer for accurate pressure readings
  • Built-in pump 10 micron suction filter
  • Cover safety interlock valve able to deactivate test pressure system when chamber door opened
  • Electric motor-driven pump system for fast pre-fill
MODEL
A
B
C
D
E
CONSOLE MATERIAL
CPC 11859
33.33"
16"
70"
13"
67"
STEEL
CPC 1859S
33.33"
16"
70"
13"
67"
STAINLESS

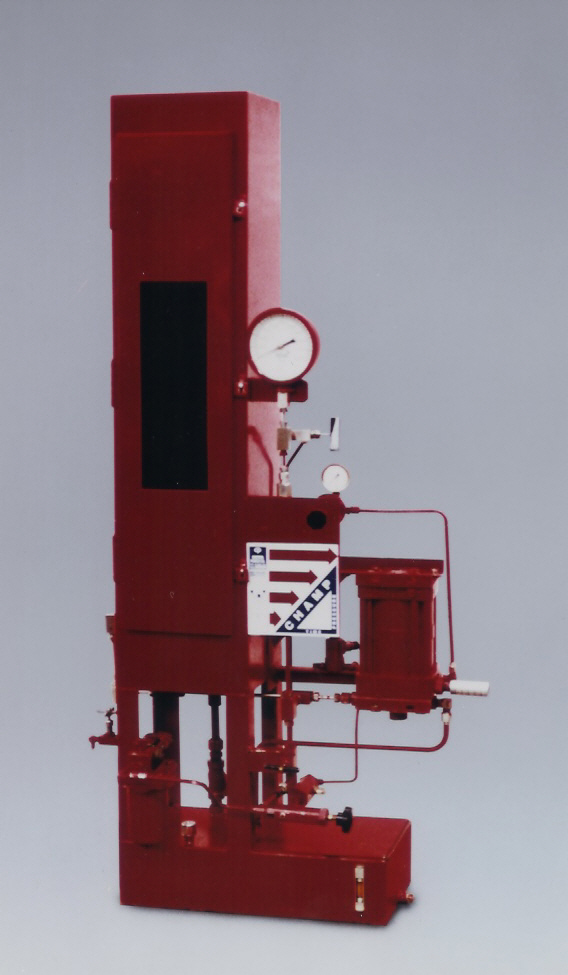

VERTICAL Burst Test Stand

Power:

110 V AC electrical, 60 PSI air supply
Capacity: Pressures to 30,000 PSI; inside dimensions 11.25 X 11.25 X 51.25"
Machine Weight: Approx. 450 pounds

Standard Features

  • Totally Enclosed Unit with a separate box containing test connectors for 0.25, 0.375, 0.5, 0.75, 1, 1.25, 1.5 and 2" hoses
  • Lexan viewing window in front door
  • 2" NPT maximum connector to test sump
  • Air operated hydraulic power unit and high pressure load valve to develop up to 30,000 PSI
  • 6" maximum pressure reading dial gauge
  • Built-in 10 micron return line filter
  • Cover safety interlock to deactivate test pressure system when chamber door opened

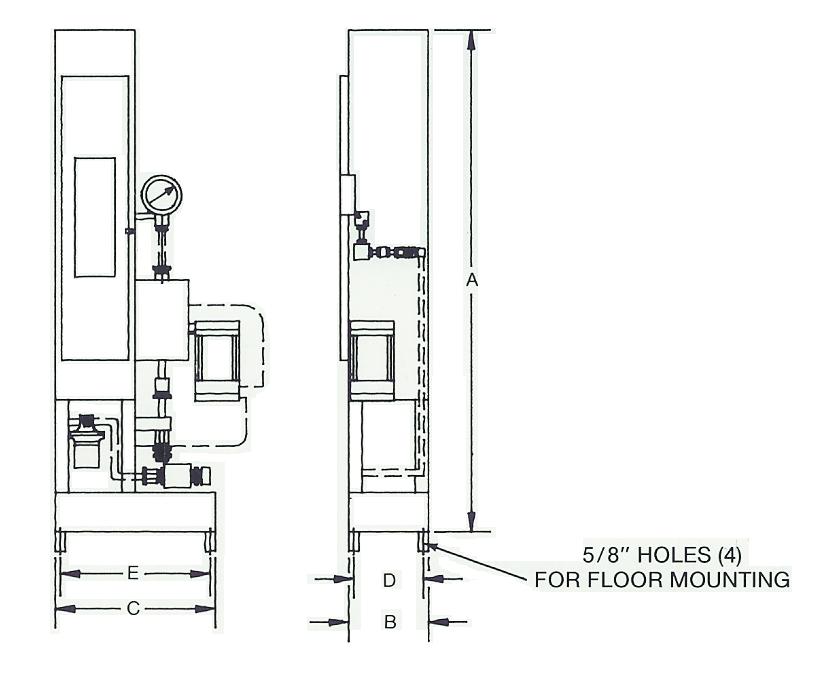

MODEL
A
B
C
D
E
CONSOLE MATERIAL
CPC 11860
73"
12"
24"
10"
22"
STEEL
CPC 1860S
73"
12"
24"
10"
22"
STAINLESS
